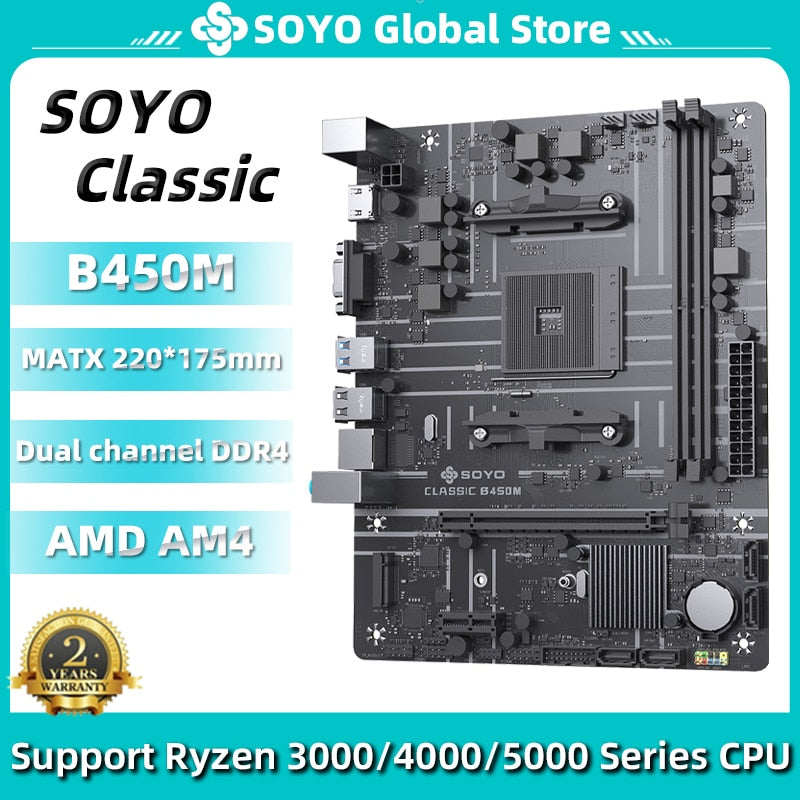

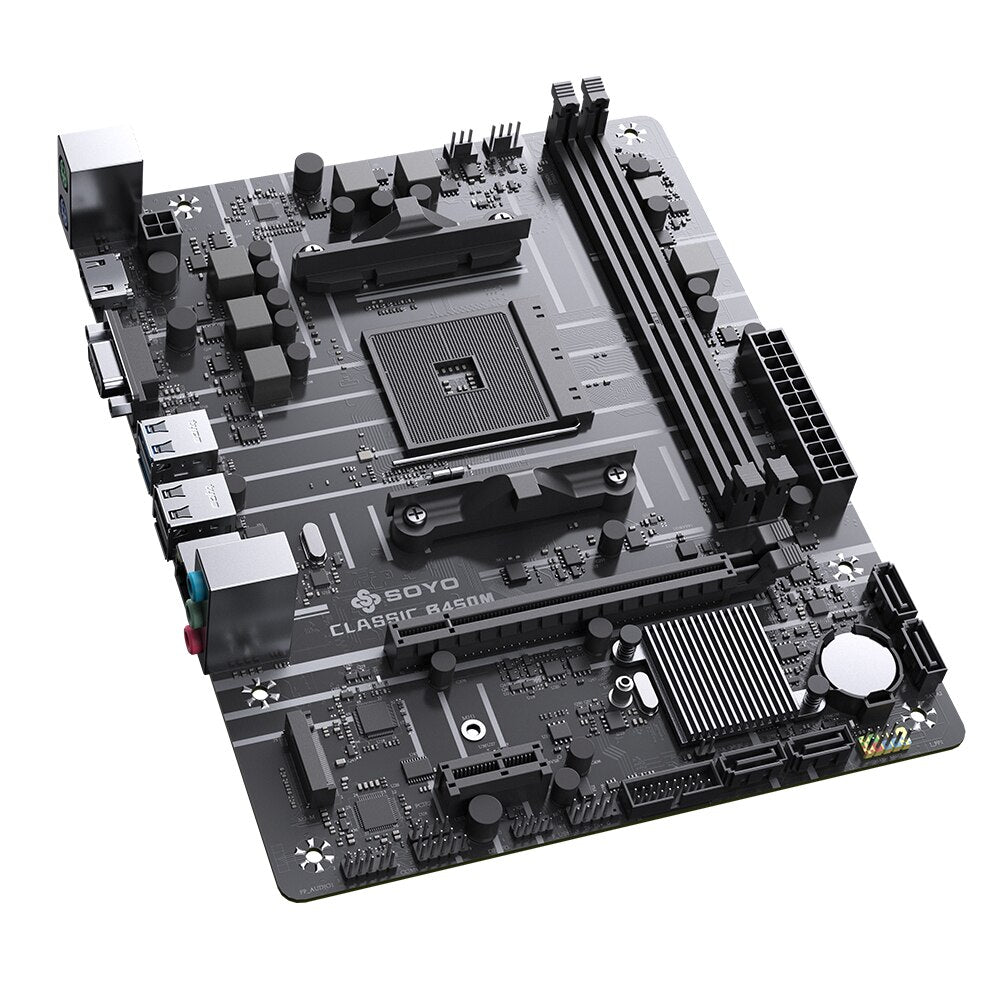

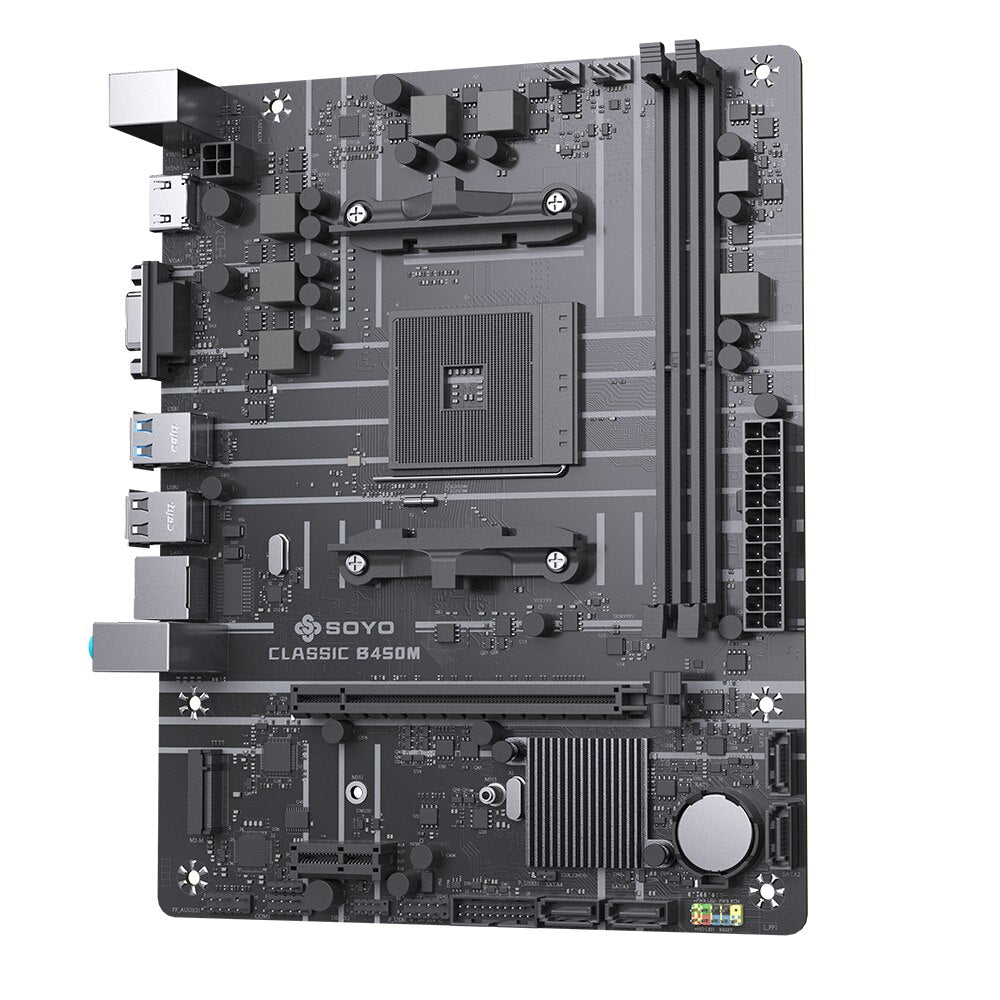

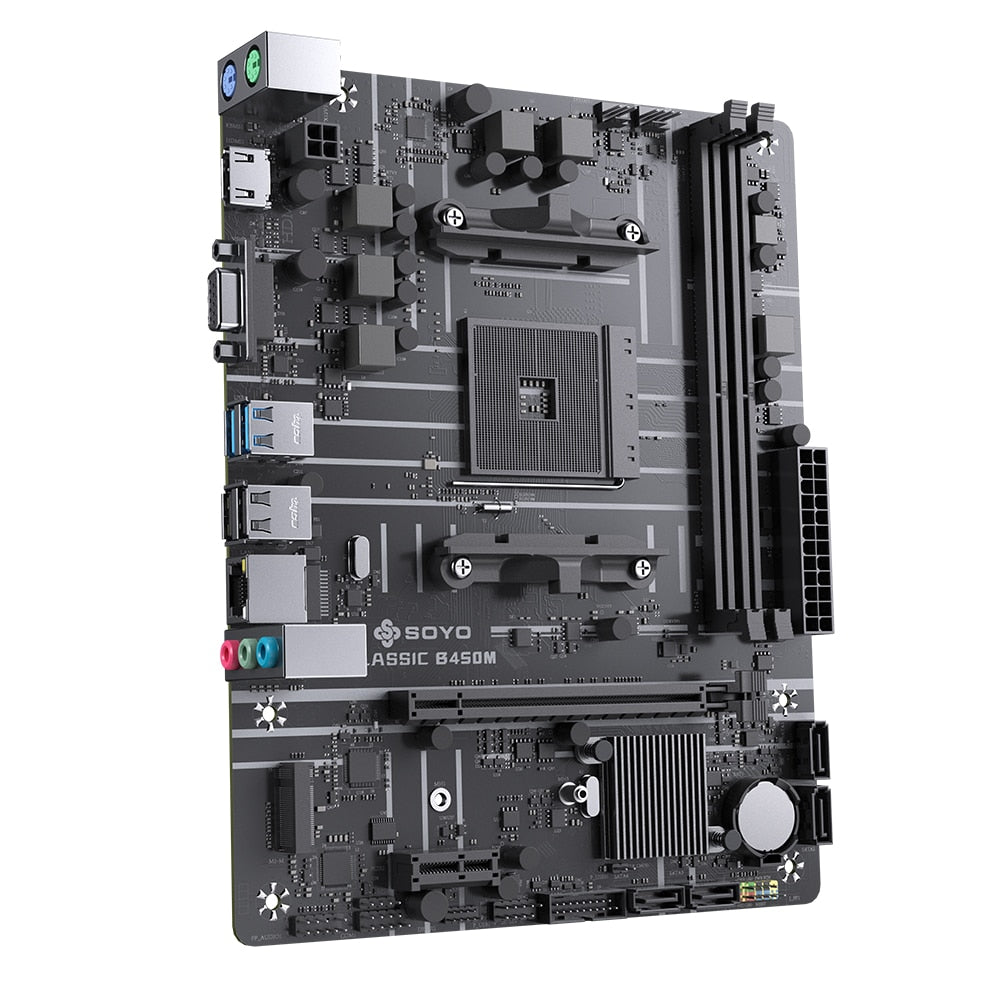

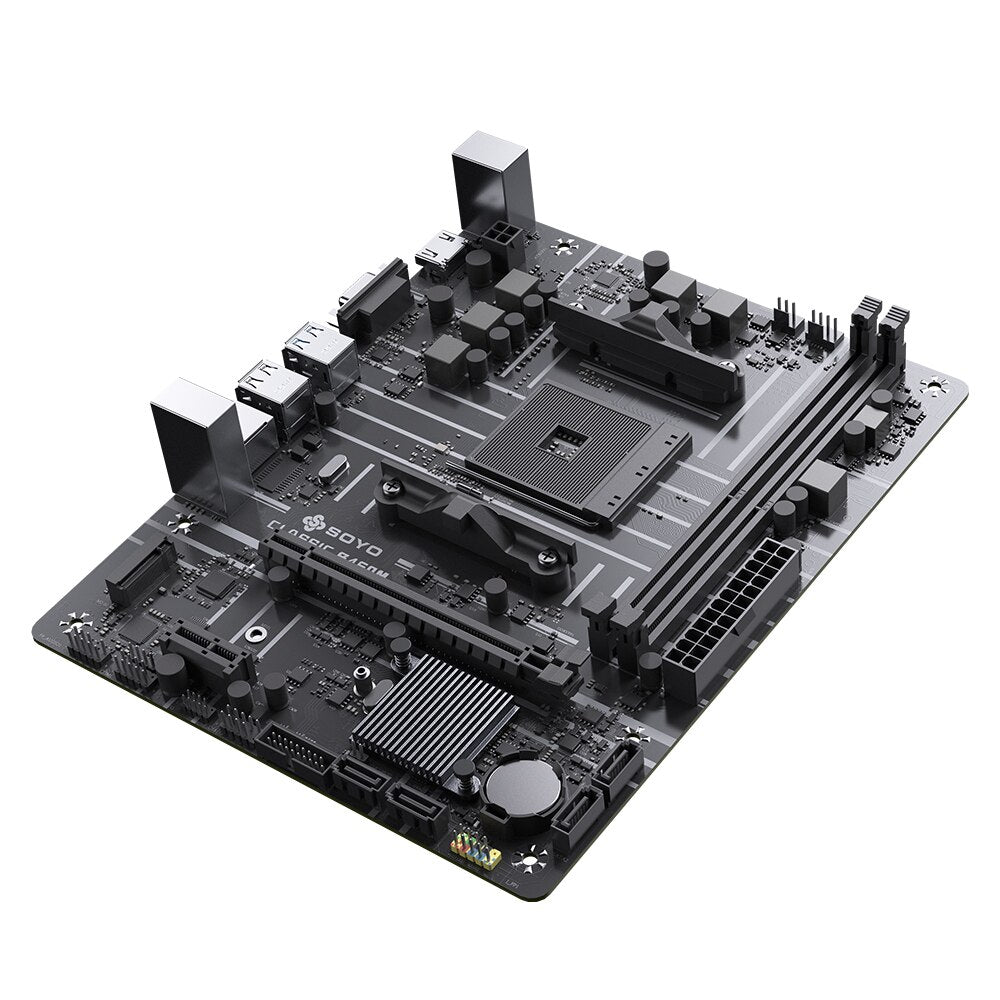

SPECIFICATIONS

With CPU: Yes

Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video,Household,Office,DESIGN,Video Production,Server,MINI PC,3-D Modeling,Video Rendering,Others

Supports M.2 SSD: 2280

Support USB Type: USB 2.0,USB 3.2 Gen1

Support Memory Type: DDR4

Storage Interface Type: SATA 3,M.2 (NVMe)

Socket Type: AM4

RAID Supported: YES

Quality Certification: ce

Processor compatibility: AMD Ryzen 4000 Series-R3,AMD Ryzen 5000 Series-R5,AMD Ryzen 4000 Series-R7,AMD Ryzen 3000 Series-R7,AMD Ryzen 3000 Series-R3,AMD Ryzen 4000 Series-R5,AMD Ryzen 3000 Series-R5,AMD Ryzen 5000 Series-R3

Package: Yes

PCI - E standards: PCI - E 3.0

Origin: Mainland China

Onboard LAN: 1x RJ45

Number of PCIe x 16: 1

Number of PCI: 1

Number of M.2: 1

Number Of Memory Slots: 2

Memory channel: Double

Maximum Ram Capacity: 32 GB

Max LAN Speed: 1000Mbps

Form Factor: Micro-ATX

Chipset Manufacturer: AMD

Chipset: AMD B450

Certification: CE

Brand Name: SOYO

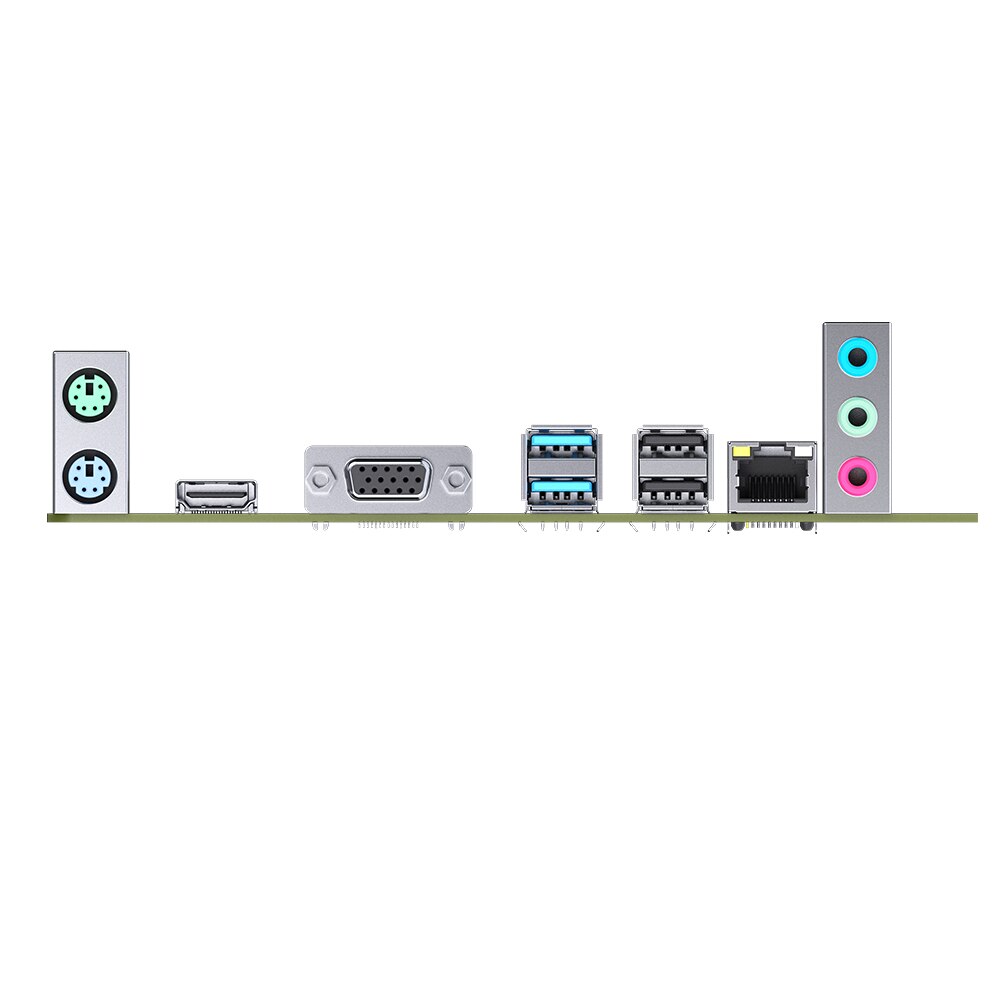

Back I/O Ports: COM,2x USB 3.2/3.1 Gen 1,4 x USB 2.0,PS/2

Audio Channels: 5.1

Application: Desktop
