SPECIFICATIONS

Brand Name: LUCKING DOOR

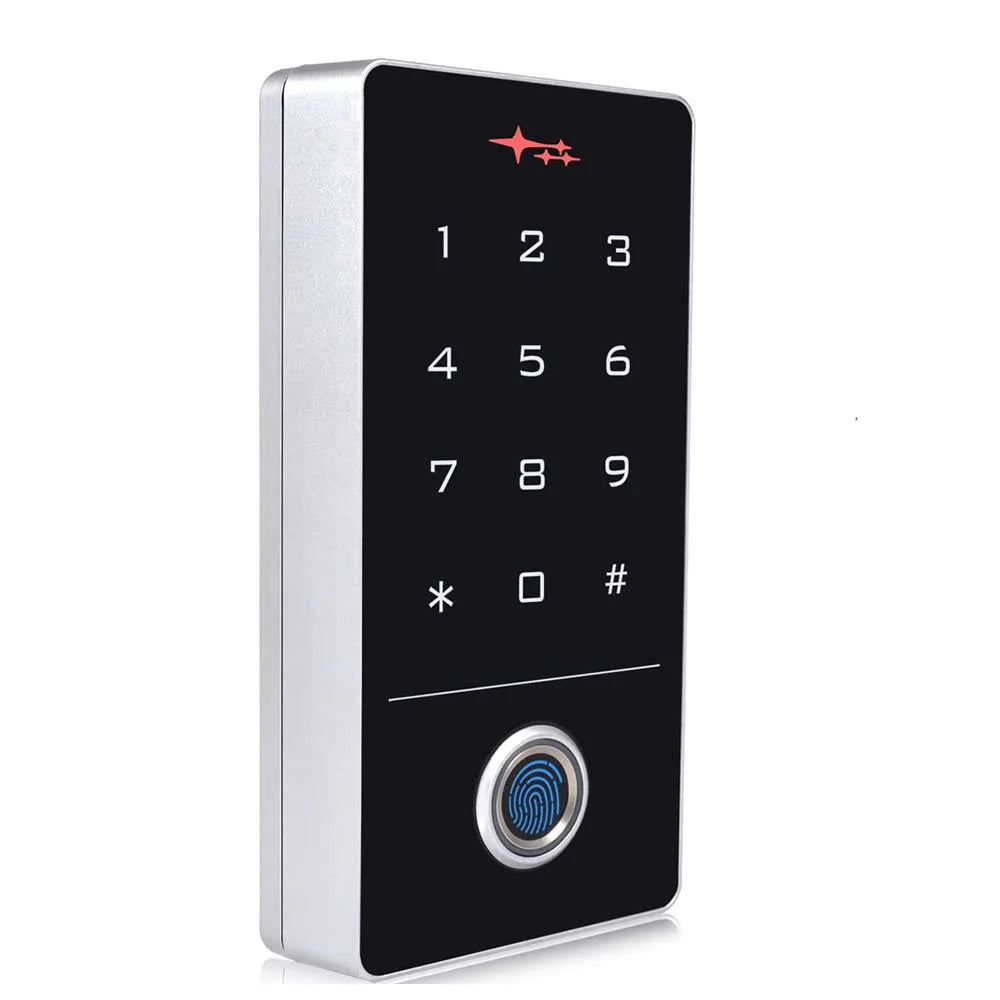

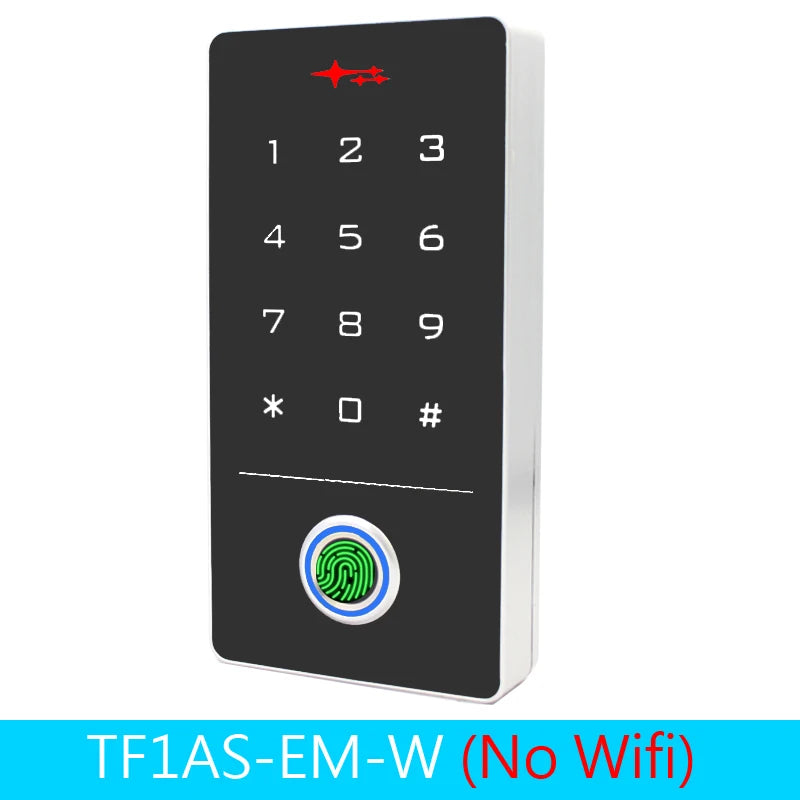

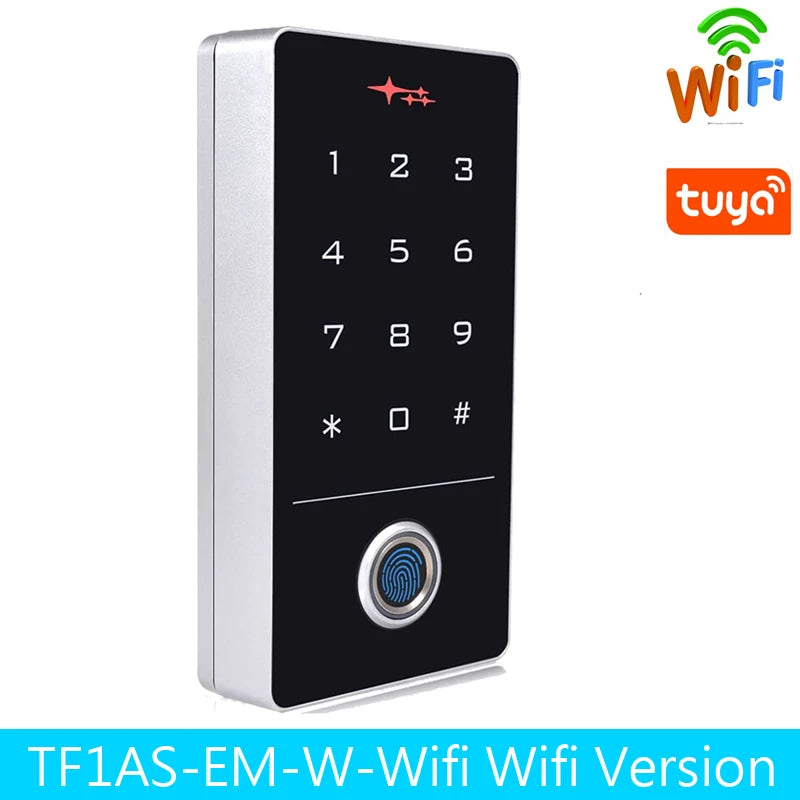

Model: TF1AS-EM-W-wifi

Interface: Lock Control

Interface: Exit Button

Interface: Wiegand

Origin: Mainland China

Card Type: Read 125KHz EM Card

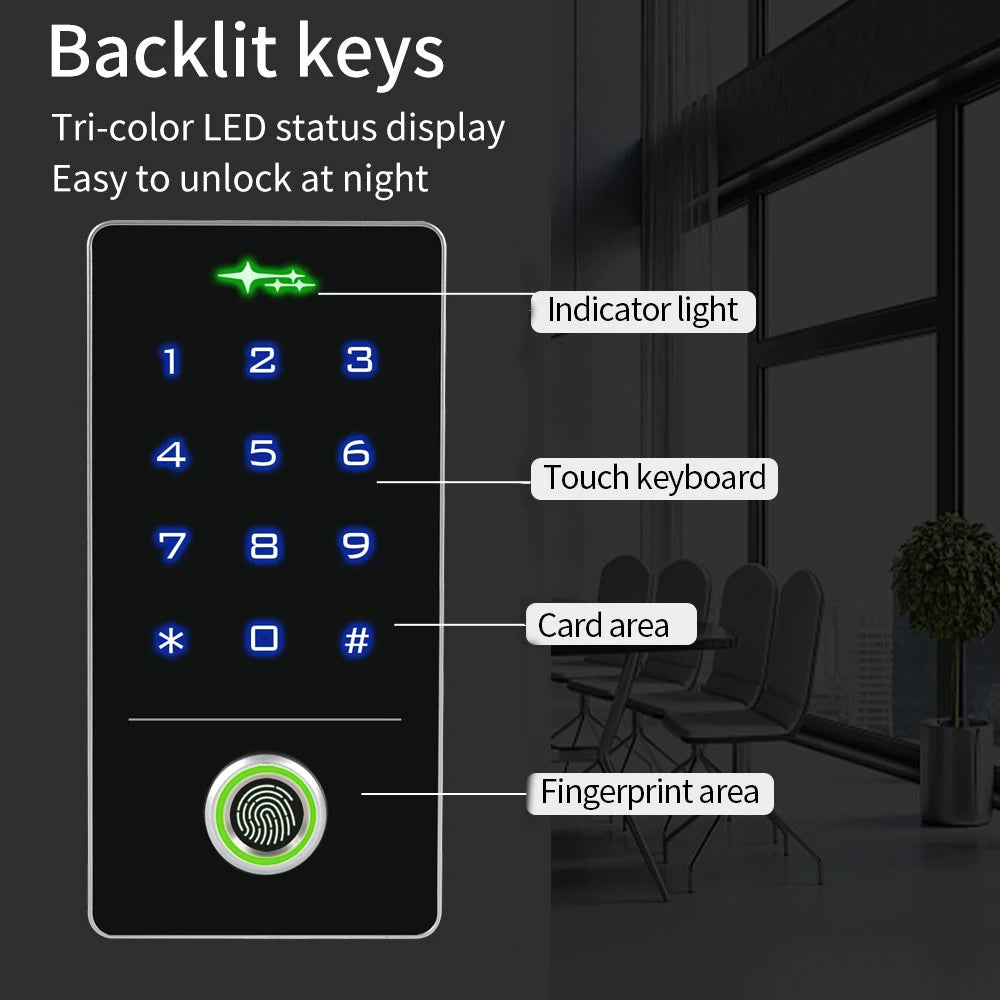

Keypad Characteristic: Plastic backlight keypad

Output Way: Contain reader mode, the transmission format could be adjusted by user

Access Way: Support seven access ways

Admin Card: Support admin add card and admin delete card

User Capacity: 10,000 card /pin users and 300 fingerprint users

Operating Voltage: DC 12V

Operating Current: ≤100mA

Operating Hurmidity: 0%~95%

Standby Current: s35mA

Operating Temperature: -40℃-60℃

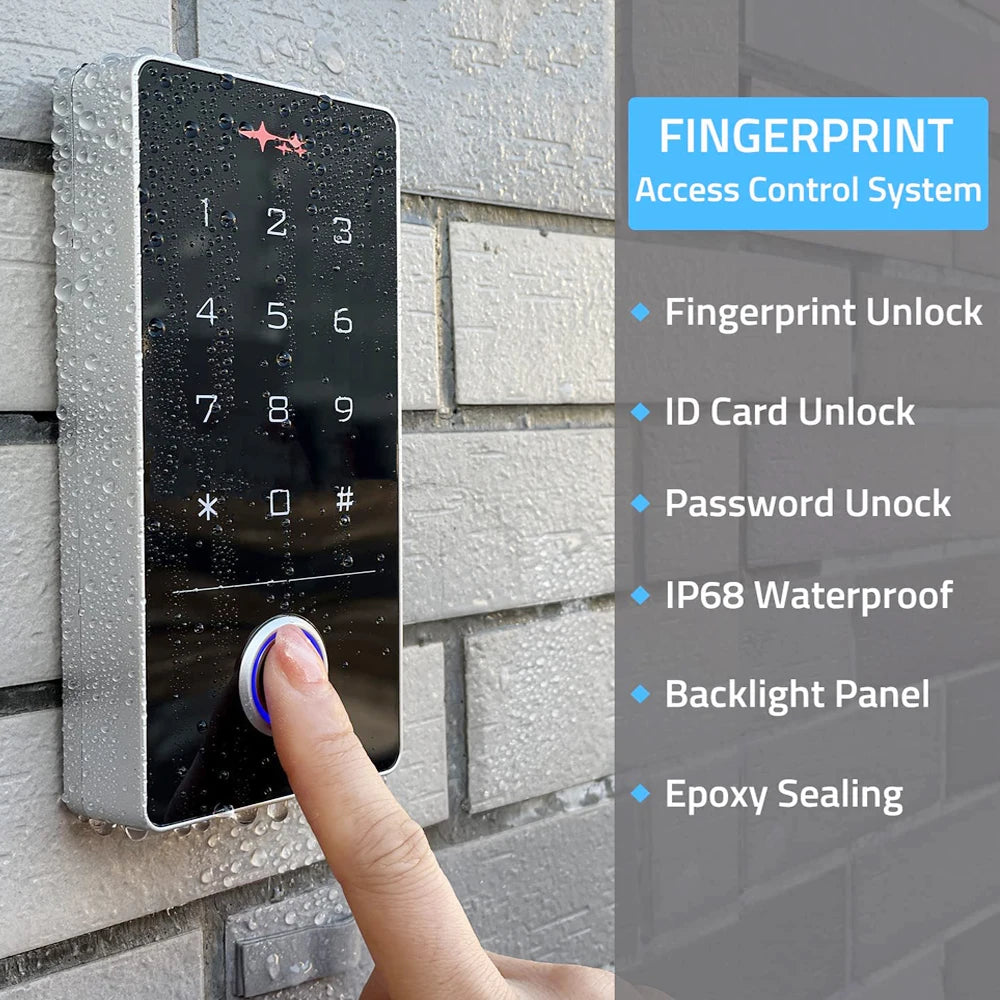

Access ways: Fingerprint, card, code, or multiple combination methods

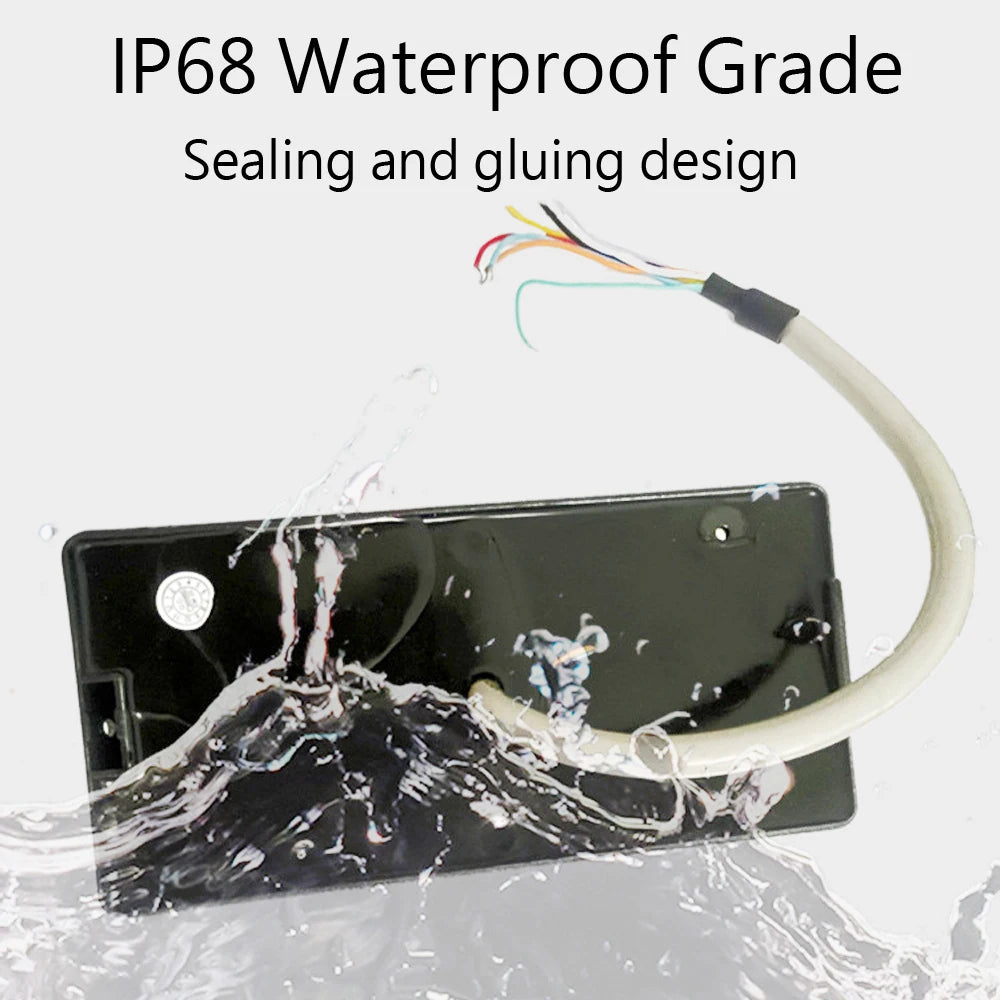

D0 (Green): Wiegand input (Wiegand output as reader mode)

D1 (White): Wiegand input (Wiegand output as reader mode)

OPEN(BEEP) (Yellow): Exit button input end (Beeper input as reader mode)

+12V (Red): Positive power supply or AC power supply end

GND (Black): Negative power supply

NO (Blue): Relay NO end

COM (Purple): Relay COM end

NC (Orange): Relay NC end
